Product No: TC-SK- 903

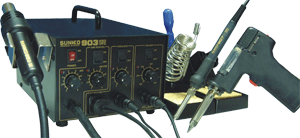

Product Name: SUNKKO 903 Three Functional SMD Repair Station
Product explain: > Functions:
1. New 903 repair system, compact size, all in one function, use with 809 welding remover gun that has higher extract force. Use with 907-ESD soldering iron that has light weight which can suitable on all type of SMD PCB soldering need.
2. Ultra-light setting for air volume control especially suitable used on high sensitive parts soldering such as BGA IC.
3. 903 3 in 1 repair system can fulfill the maintenance function. Saving workspace. All function can use individual.
4. Anti-static design. Output voltage of Welding remover gun and Soldering iron is 24V to prevent the circuit from damage due to leakage.
5. Adjustable airflow rate and temperature can suitable to desoldering the ICs of QFP, SOP, PLCC and SOJ etc.

Control Station
Total Power Consumption 220V / 420W
Soldering
Power Consumption 220V / 270W
Air Pump Diaphragm pump Air Flow Rate 0.3 - 24L /min
Hot Air Temperature 100¡æ ~ 550¡æ
Soldering Station
Output Voltage 24V AC
Power Consumption 60W
Temperature Range 100~480¡æ
Temperature Stability ¡À1¡æ (no load)
Tip to Ground Resistance Below 2¦¸
Tip to Ground Potential Below 2mV
Welding Remover Gun
Fixed Voltage AC 220V
Power 12W
Heating Element 70W Ceramic Heater
Vacuum Force 600mmHg
Time in max. pressure 0.2 sec
Temperature Control Range 350¡æ ~ 480¡æ

* Packing size and weight £º(unit£ºmm,g)
Length Width Height Net Weight Gross Weight
330 275 190 6360 6700
