Product No: TC-SK-850D

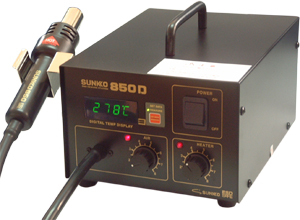

Product Name: SUNKKO 850D Digital thermostat SMD rework station
Product explain: > Functions:
1. A light touch switch to change the temperature preset function / temperature measure display alternatively. The preset temp value, measure temp value are display very clearly.
2. It has automatic energy saving mode. When press the preset temperature on switch at the handle, the heater will be power on and increase to the preset temp. To prevent the heater waste the heat energy if not use. Increase the heater core lifetime and energy saving.
3. High precision thermostat at ¡À1¡æ. Automatic PID control mode. Keep a linear temperature thermostat control even changed the airflow rate.
4. It has longest lifetime design due to use foreign heater core and high performance, large airflow rate of pump.
5.Suitable for high quality controlled electronics manufacture on SMD IC repairing. Used on a repairing center.

Function

Preset temperature value

Input Voltage 220V AC
Power Consumption 275W
Pump Type Diaphragm pump
Air Flow Rate 0.3 - 24L /min
Pump Power 45W
Heating Element 250W Metal Heater
Hot Air Temperature 100¡æ ~ 550¡æ
Temperature Accurate ¡À1¡æ
Quick Start Time Less than 28sec

* Packing size and weight:(unit:mm,g)
Length Width Height Net Weight Gross Weight
330 275 190 3100 3500
